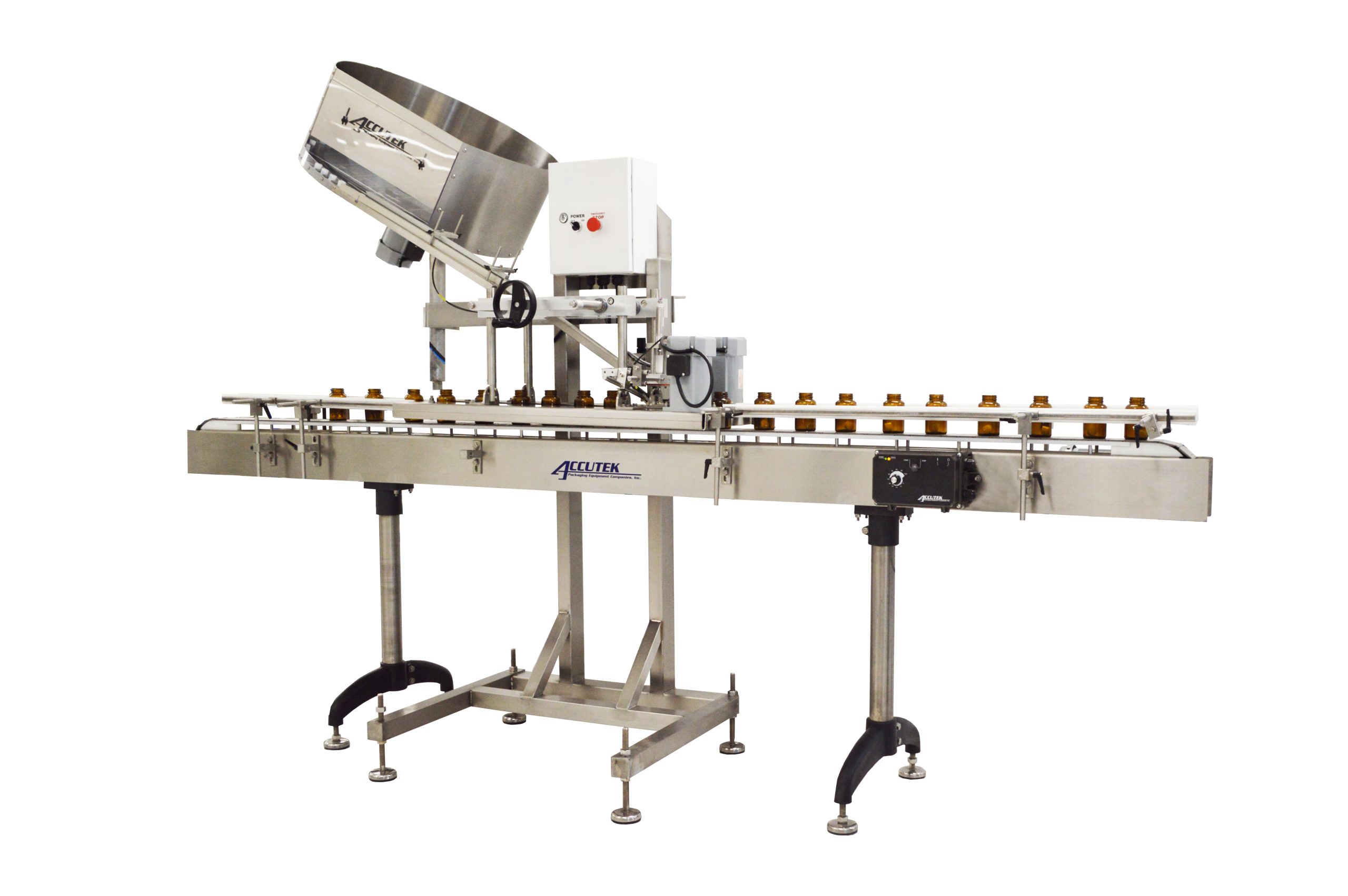

Desiccant Inserter

At Accutek, we lead in packaging innovation, offering cutting-edge desiccant inserters, part of our comprehensive packaging equipment solutions.

Desiccant, a potent dehumidifier, safeguards products in pharmaceutical and nutraceutical industries, preventing clumping and sticking. They’re precisely dropped into containers, cradling each bottle until filled, with a capacity of up to 60 cpm.

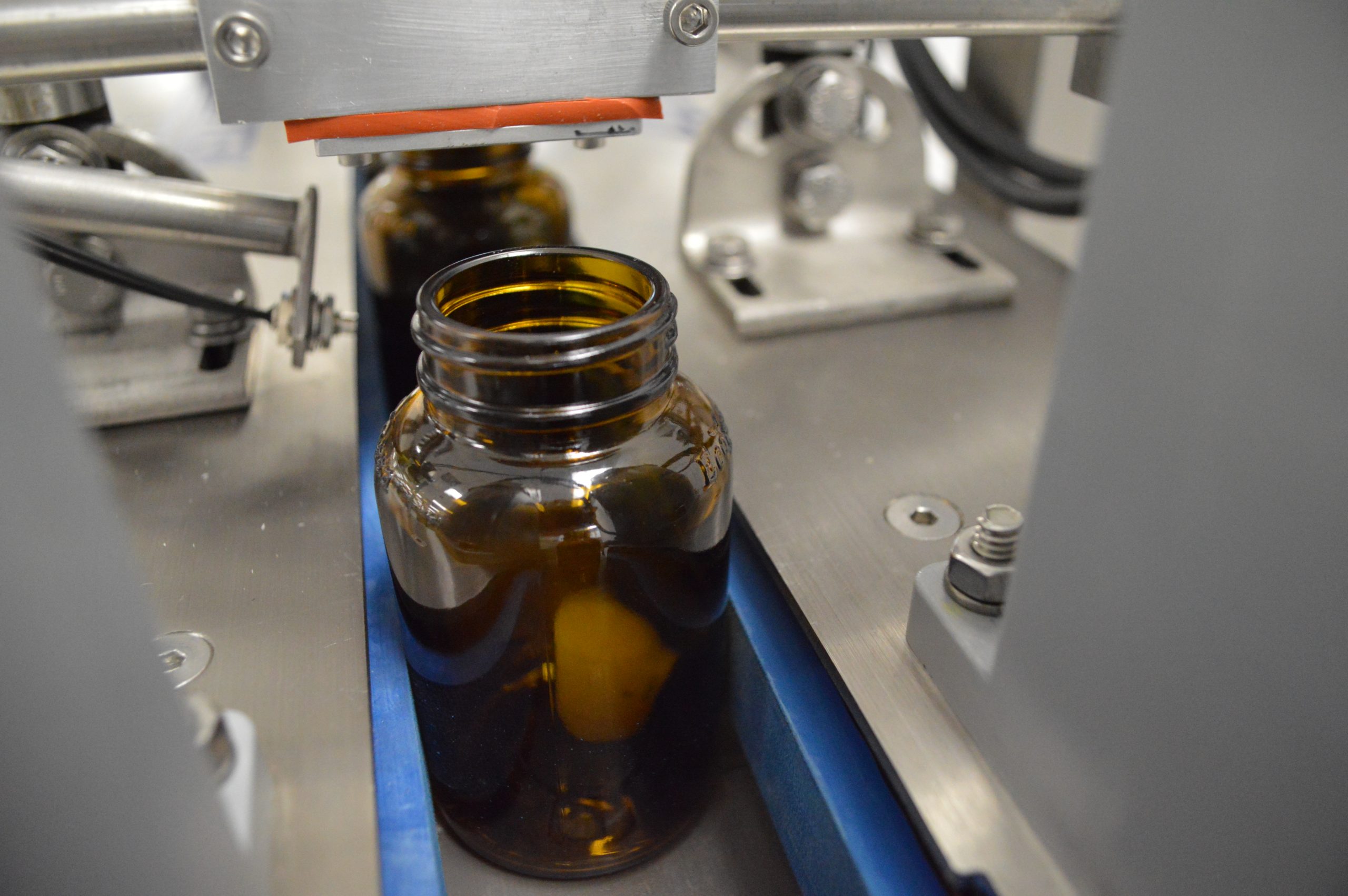

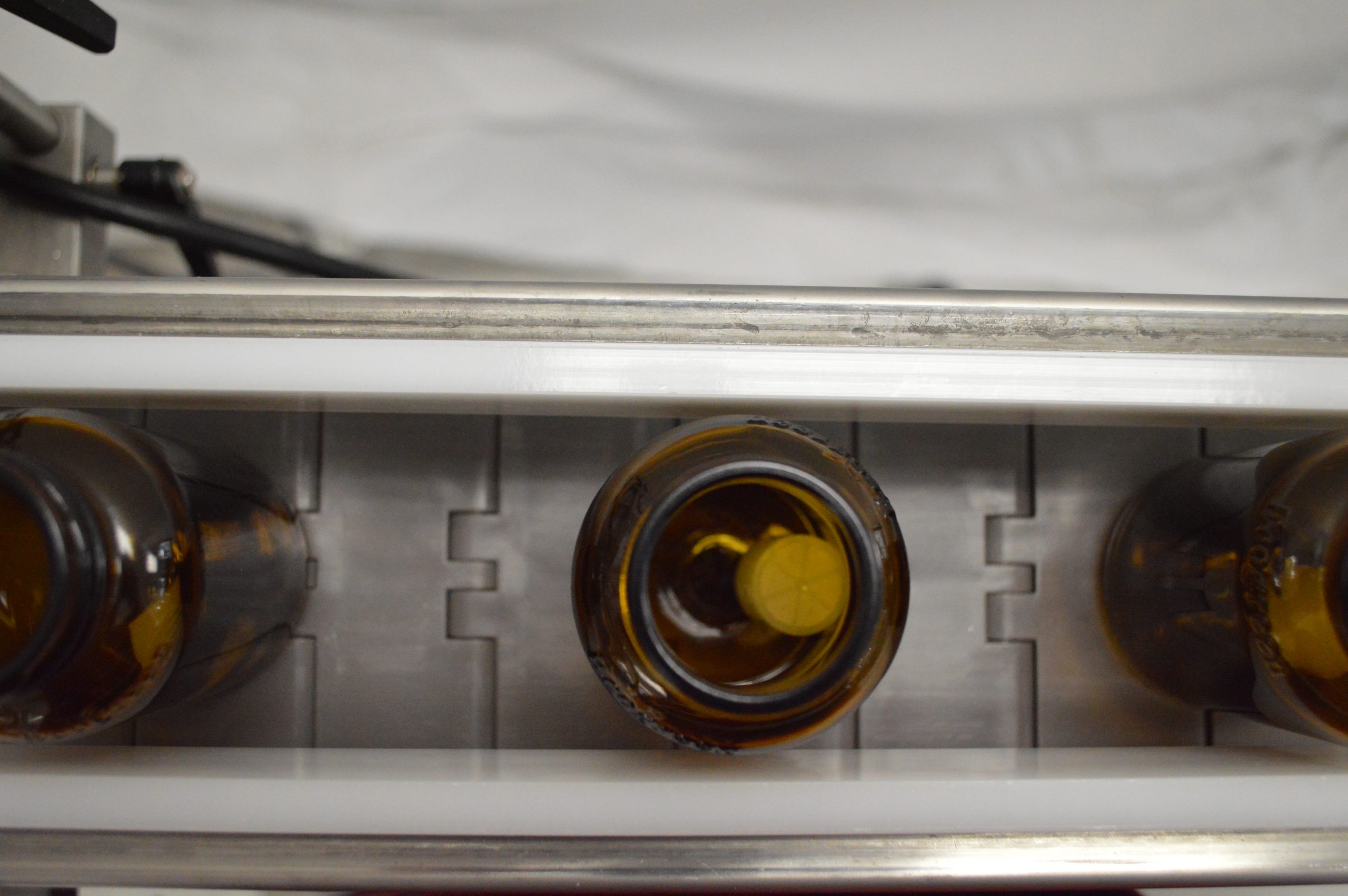

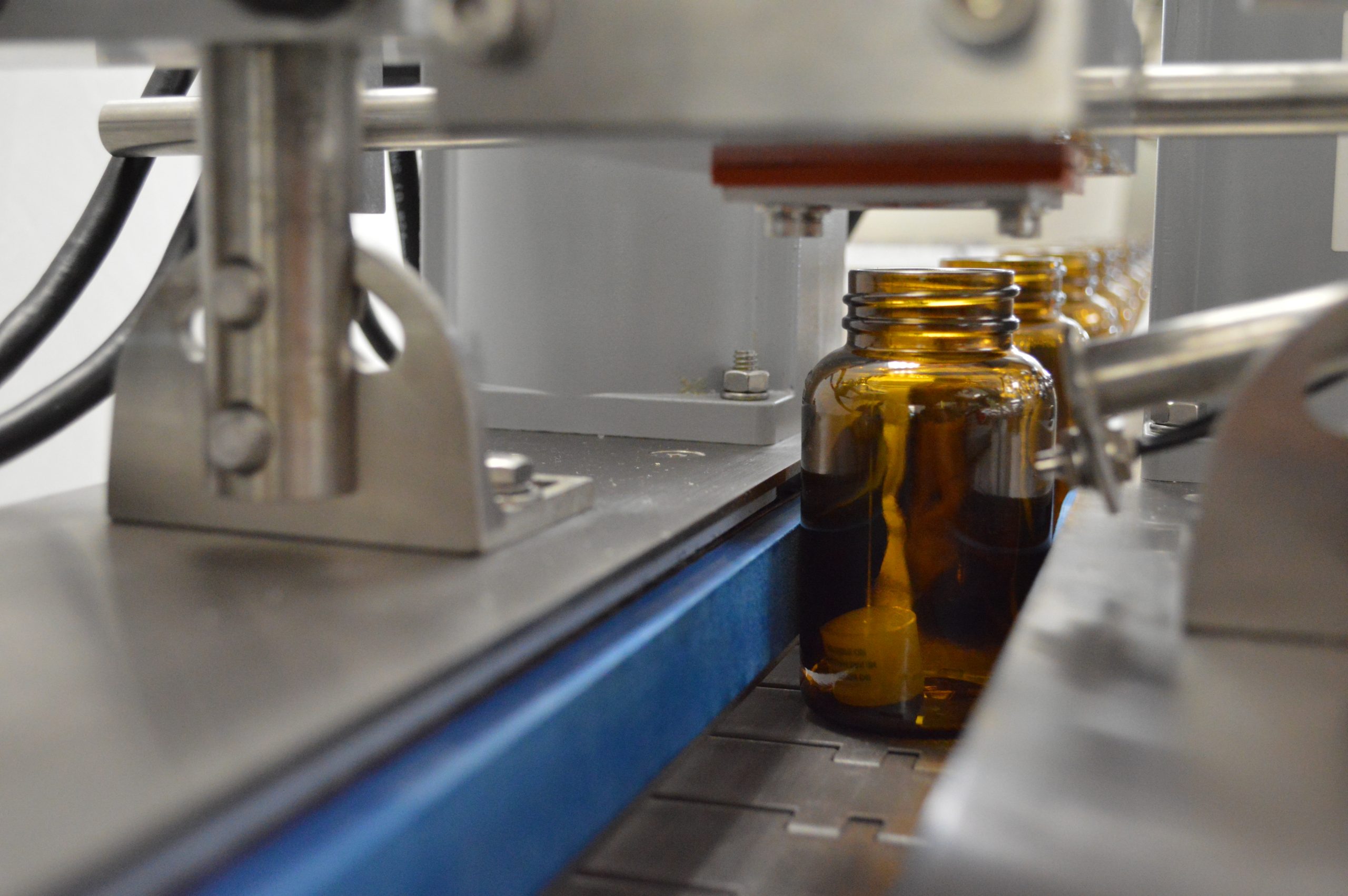

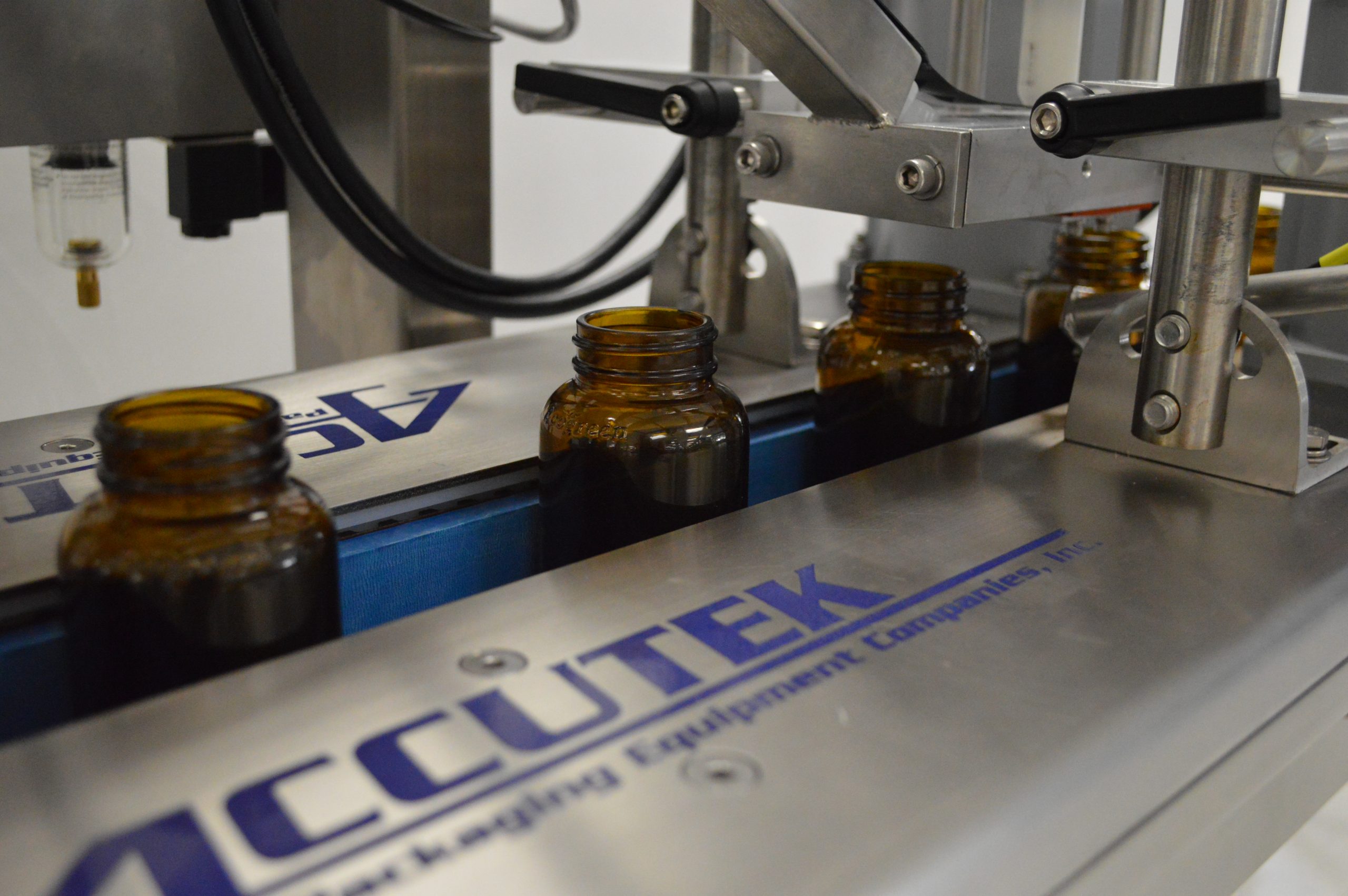

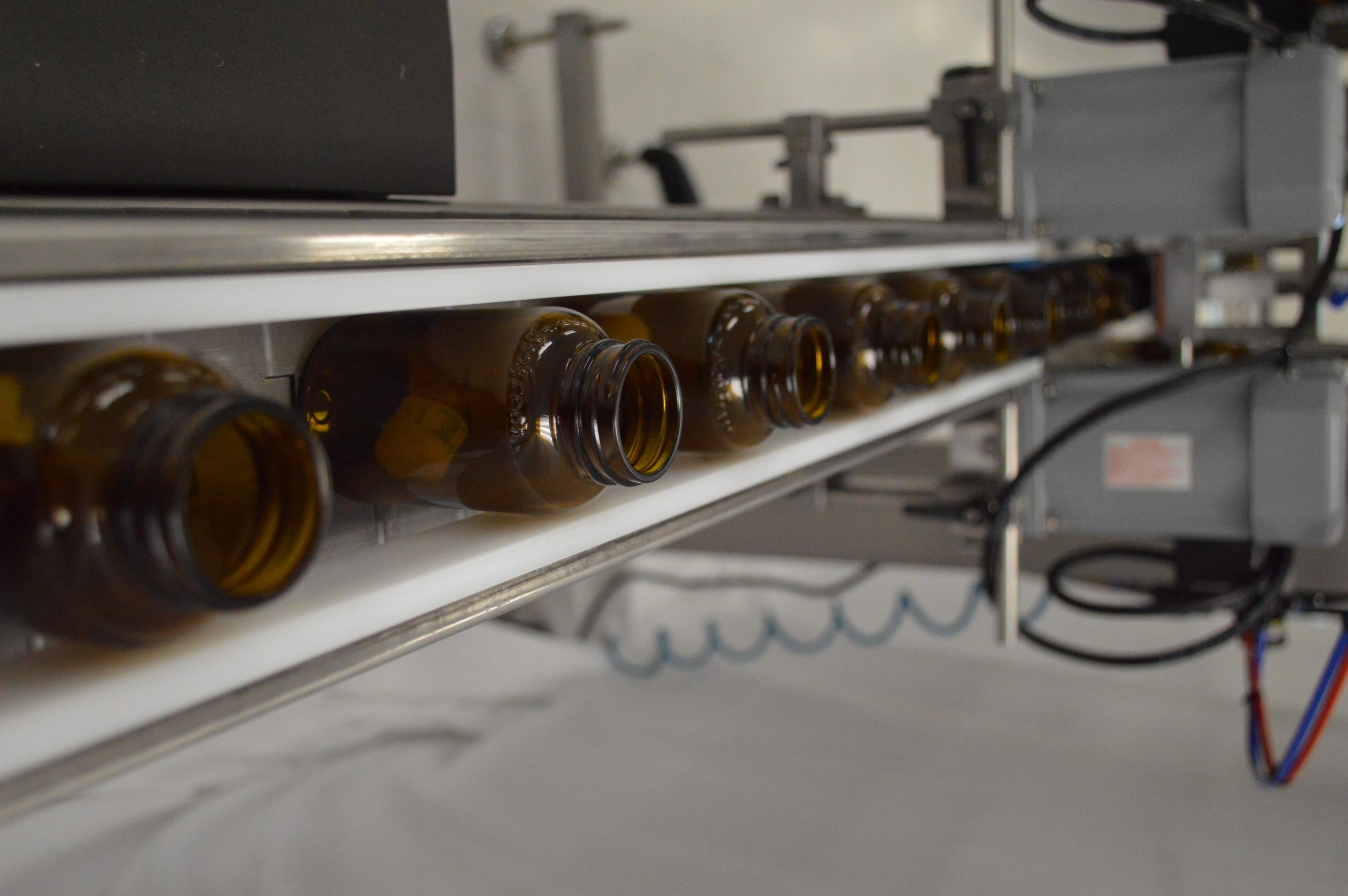

Automatic Desiccant Inserter features a pneumatic stomp assembly.  The conveyor moves the barrels under the chute. The bottle opening strips a barrel from the chute as it passes under the chute. The bottle sensor sees the bottle and fires the stomper. The stomper presses the desiccant barrel into the bottle.

Features:

• Touch Screen Control System: The touch screen control panel serves as the user interface for operating the machine. Operators can use the touch screen to set parameters, monitor the process, and make adjustments as needed.
• Speed: Up to 60 CPM
• Programmable Fiber-Optic Sensors: Fiber-optic sensors are used for bottle detection with adjustable sensitivity based on bottle material and color.
• Powered Height Adjustability (Bottle Height Adjustment): This feature enables the machine to accommodate bottles of various sizes/
• Job Memory: The system can store and recall specific configurations and settings for different bottle types or production runs, streamlining setup and reducing operator error.
• Heavy-Duty Construction: The machine is built with a robust and durable construction to withstand the rigors of continuous operation in an industrial setting.
• Sanitary Stainless Steel C Frame: The frame of the machine is made of sanitary stainless steel, which is easy to clean and maintain, important for food and beverage production environments.

Options:

• Bulk Loader for Centrifugal Bowl:   A level sensor will trigger a bulk loading elevator to replenish barrels in the Centrifugal Bowl.

Recommended Products this machine can fill:

• Pharmaceuticals and nutraceutical industries

Specifications:

• Air: 90 Psi @ 3 CMF
• Electric: 120/220 VAC 50/60Hz Single Phase 20Amps
• Type: Automatic Desiccant Inserter with a pneumatic stomp assembly.  The conveyor moves the barrels under the chute. The bottle opening strips a barrel from the chute as it passes under the chute. The bottle sensor sees the bottle and fires the stomper. The stomper presses the desiccant barrel into the bottle.
