The 4kw Solid State Induction Generator is housed in a sanitary stainless steel splashproof enclosure 400 x 400 x 200mm with all controls mounted behind a window with a lockable door. Facilities are provided for interl
Upload a photo—we’ll match you with the perfect one!

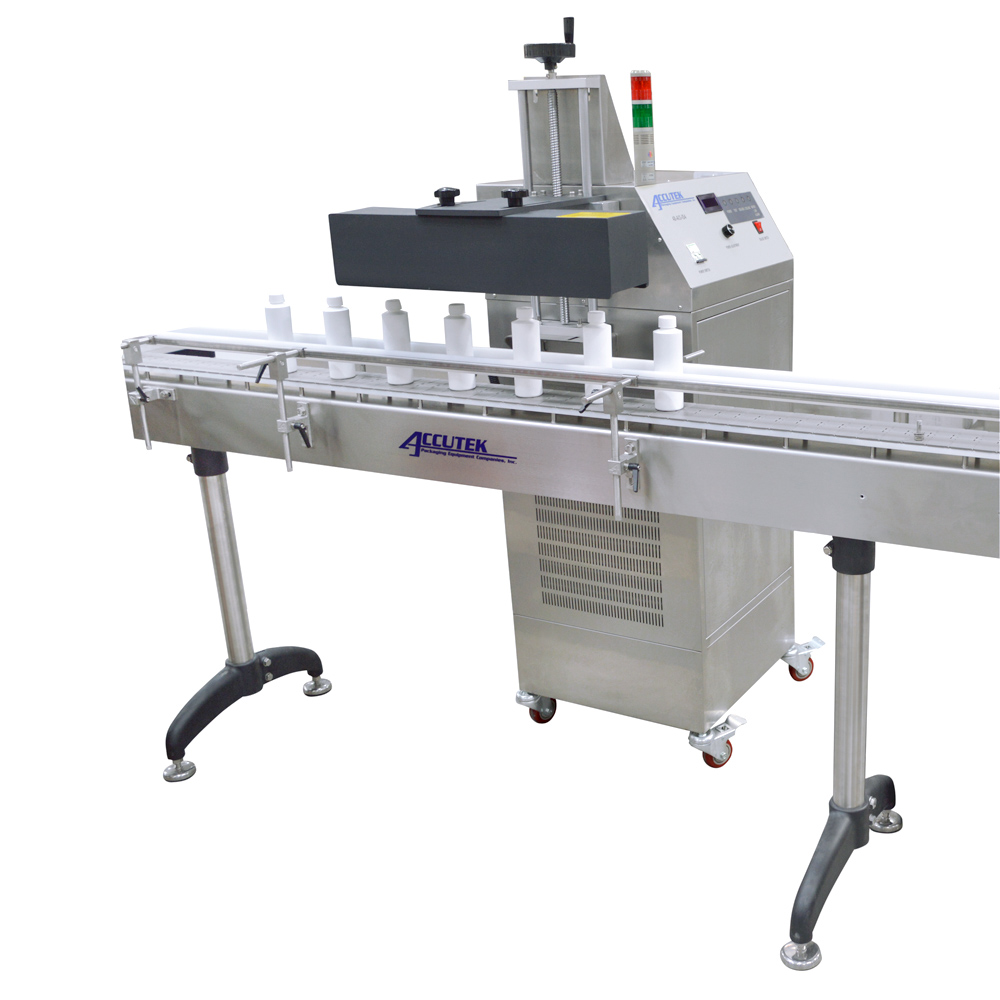

The 4kw Solid State Induction Generator is housed in a sanitary stainless steel splashproof enclosure 400 x 400 x 200mm with all controls mounted behind a window with a lockable door. Facilities are provided for interlocking the availability of output power with conveyor movement and a flashing beacon functions if a fault condition occurs. Induction Heat Sealing Heads are available to cover a range of closure designs and diameters up to 120mm. The sealing head is dimensioned in relation to the conveyor speed and other factors to optimize the sealing conditions.
In addition, the sealing head mounting is adjustable, including the ability to ‘skew’ which enables exposure times to be reduced if necessary as well as achieving a more uniform heat pattern for larger closures. This versatile, selfcontained and compact equipment, including Induction Sealer and water cooler/recirculator, operates from a single phase 200/240V 12A 50Hz supply.
| Cap Size: | Up to 120mm |
| model: | AIS-IS2 |
| height: | 54 |
| length: | 28 |
| width: | 24 |
| weight: | 200 lbs |
| speed: | Up to 300 CPM |
Features
Options
